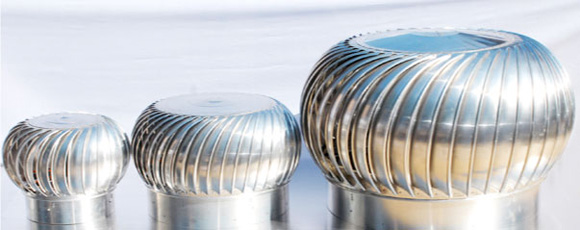

Spherical vane ventilators are suited for general purpose applications, that do not involve heat and dust. Popular existing applications include :

• Warehouses
• General engineering industrial sheds
• Educational / other institutions
• Residential / commercial
• Hospitals

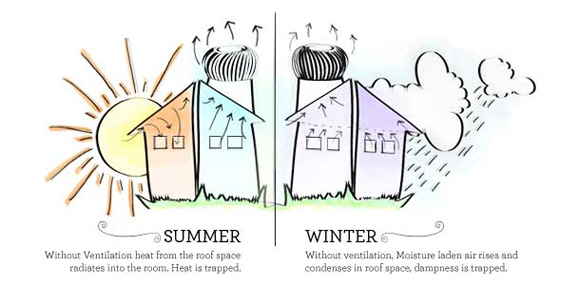

The mechanics involved in air movement is very simple. The hot air inside the shed tends to rise up. When the turbines rotate, they suck the warm air out through the vent, bringing out a drop in temperature in the shed, allowing a supply of fresh air through the doors and windows.

Technical Specifications

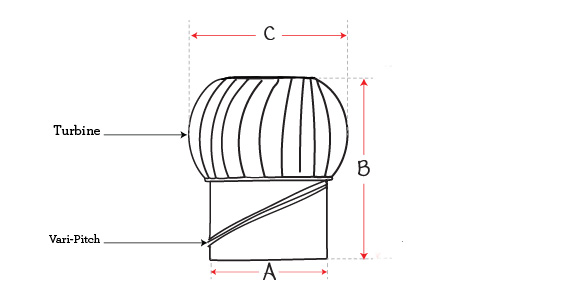

MODEL	DIMENSIONS (MM)			NO. OF VANES
	A	B	C
WINDY 14 PLUS	360	590	488	24
WINDY 24 PLUS	600	745	725	42
WINDY 36 PLUS	900	1065	1115	42

Material Specifications

TOP	All Aluminium with integrated and reinforced main bearing housing
SHAFT	Stainless Steel
VARIPITCH	Aluminium
BASE FLASHING	FRP matching customers roof profile
ROTATION BEARINGS	Twin ZZ Ball Bearings encased in single integrated bearing housing

• Steel ball bearings.
• Variable Angle Elbow for Vertical Installation.
• Completely enclosed & dust-proof integrated bearing housing.
• Bearings are aligned with each other due to integrated housing.
• Rotation at nearly zero wind speeds due to aligned bearings.
• Static balancing.
• Suitable for low roof heights.
• Optional UV stabilized powder coating for corrosive atmosphere.
• Suitable for dusty / smoky / sooty / oily / harsh conditions.
• Special rubberized hardware - to prevent rain ingress.
• High exhaust capacity.
• No exhaust problem due to air back draft.
• All Aluminium construction.
• Stainless steel hardware.
