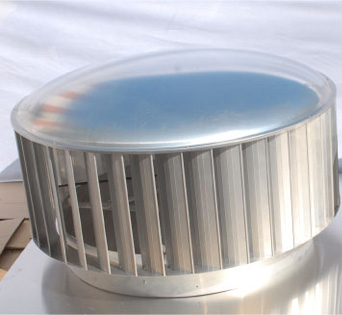

Designed to withstand heat, dust, high wind loads, harsh and extreme environmental conditions, the Hurricane Ventilator is ideal for industrial, commercial and community buildings.
The Hurricane Turbine Roof Ventilators provide efficient and cost-effective systems of natural ventilation.
The state-of-the-art bearings are protected against jamming, by isolating them from discharge air.
The most popular existing applications :
- All types of industrial sheds
- Shed ventilation in areas having high wind load
- Shed ventilation in areas having high rainfall
Hurricane 600
Technical Specifications
| MODEL | A (mm) | B (mm) | C (mm) | NO. OF VANES |
| Hurricane 600 | 600 | 745 | 765 | 24 |
Material Specifications
| Top | All Aluminium |
| Shaft | Stainless Steel |
| Varipitch | Aluminium |
| Base Flashing | FRP Matching Customer's Roof Profile |
| Rotation Bearing | TANDACO Ball Bearing System |
Hurricane 900
Technical Specifications
| MODEL | A (mm) | B (mm) | C (mm) | NO. OF VANES |
| Hurricane 900 | 900 | 950 | 1096 | 39 |
Material Specifications
| Top | All Aluminium |
| Shaft | Stainless Steel |
| Varipitch | Aluminium |
| Base Flashing | FRP Matching Customer's Roof Profile |
| Rotation Bearing | TANDACO Ball Bearing System |
- Wind-powered
- Weather-proof
- All aluminum construction
- A varipitch base that suits all roof slopes up to 22.5°
- Vertical vanes for improved starting torque
- Improved circulation of air by exhausting warm and stale air.
- Improved torque at low wind speed.
- Excellent protection against rain.
- Large exhaust opening.
- Positive locking to turbine ring.
- Greater ‘SAIL’ area to drive the turbine.
- The Tandaco pre-packed double row ball bearing system.
The Unique Tandaco Bearing System
The Hurricane incorporates the Tandaco double row heavy duty Ball Bearing System, manufactured to perform for a lifetime. It is secured into a reinforced bearing holder with variable length buttresses, designed to stabilize the turbine at all wind speeds. The bearing is completely isolated from corrosive environmental conditions by its location between the dome and top diaphragm. The Tandaco Bearing is a precision Ground Spindle Bearing with a double row ball bearing cage.
