Features
Thin and light
Being made of carefully selected materials, SE belts are extremely strong, yet thin and light in weight.
Mainlenance-free
Because of the strength of SE belts, belt creep is largely eliminated, hence the need for repeated retensioning of the belts.
Seamless
Splice free belts made by molded forming with excellent, dimensional stability.
High rolalion accurcy
High rotation accuracy is available as pitch line is stable.
Excellent flexibility, bending resistance and abrasion resistance
Excellent flexibility, long flex life and abrasion resistance can be expected even with power transmission and carrying equipment using very small pulleys.
Excellenl cold, heat and ozone resistance
Belts unsusceptible to surroundings such as temperature and ozone can be used for a wide range of applications.
SE belts are available for continuous use in temperatures ranging from -30°C (-22°F) to + 180°C (+356°F)
Various product Types
More than 100 belt types with a wide variety of materials and constructions are available.

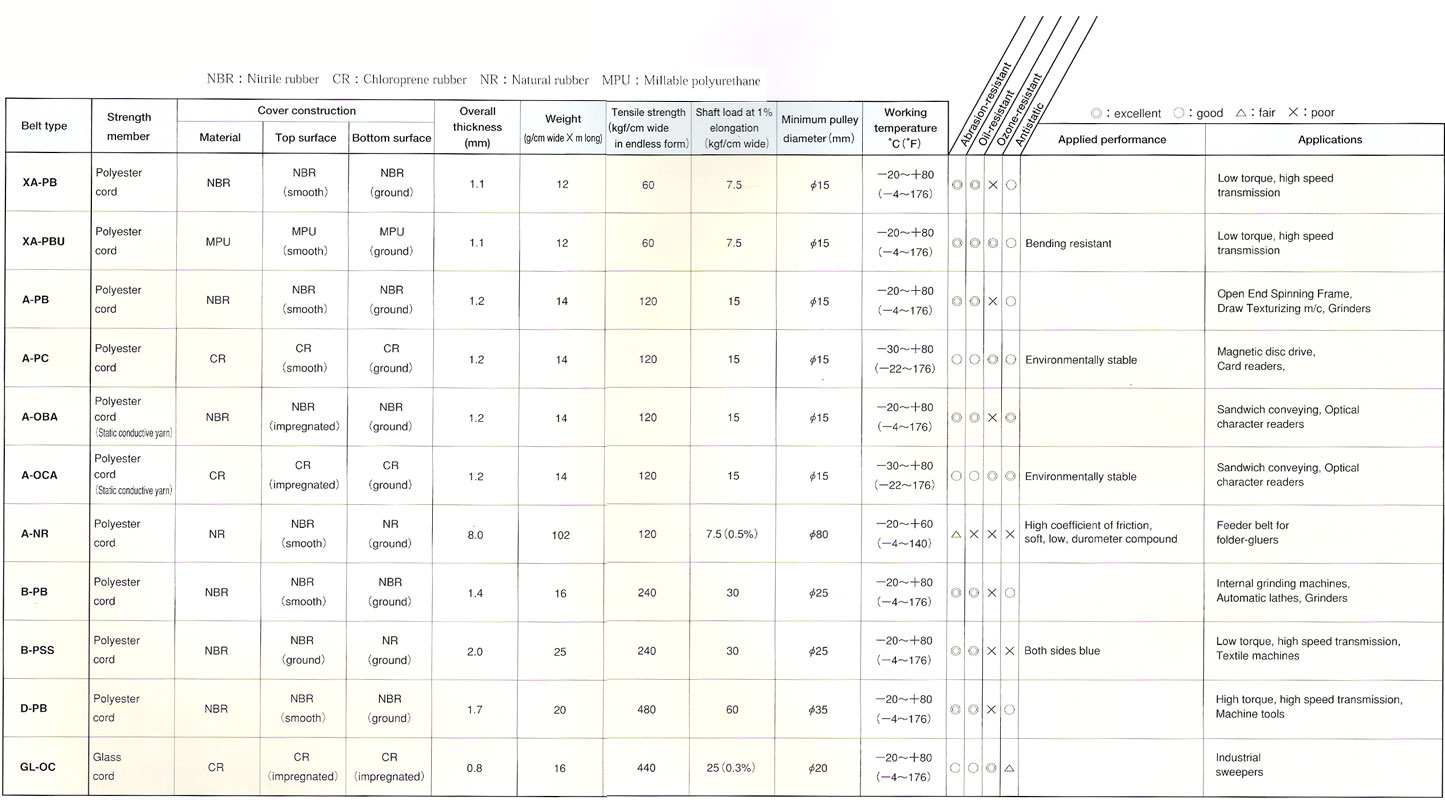

Chart
For Product Information Chart click here
| NITTA (SEAMLESS BELTS - A-PB) | |
| Strength Member | Polyster cord |
| Cover Construction | |
| - Material | NBR |
| - Top Surface | NBR (smooth) |
| - Bottom Surface | NBR (ground) |
| Overall Thickness (mm) | 1.2 |
| Weight (g/cm wide x m long) | 14 |
| Tensile Strength (kgf/cm wide in endless form) | 120 |
| Shaft load at 1% elongation (kgf/cm wide) | 15 |
| Minimum Pulley Diameter (mm) | Ø15 |
| Working Temperature °C(°F) | -20~+80 (-4~176) |
| Abrasion Resistant | Excellent |
| Oil Resistant | Excellent |
| Ozone Resistant | Poor |
| Antistatic | Good |
| Applied Performance | |
| Applications | Open End Spinning Frame, Draw Texturizing m/c, Grinders |
For all intermediary sizes please contact our sales department.
