Round-shape belt tooth enables the distribution of the load stress uniform over the entire belt tooth. Since the belt tooth engages with the pulley groove without any interference, stress concentration at the root of the belt tooth can be eliminated.
 |
 |
|---|
1) Glassfiber Cord - Tough, heat-resistant glassfiber cords spirally wound are located within the belt pitch line, generating correct and positive belt engagement with pulley and negligible belt stretch in operation.
2) Chloroprene Rubber - Flexible chloroprene backing protects the glassfiber cords from oil and moisture and also from frictional wear when power is transmitted from the back of the belt.
3) Nylon Facing - Wear-resistant nylon fabric assures smooth engagement of belt in mating pulley grooves.r

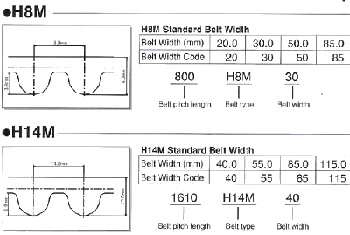

| 3M TYPE | ||||||||||
| Size | Size | Size | Size | Size | Size | Size | Size | Size | Size | Size |
| 3M 159 | 3M 192 | 3M 210 | 3M 309 | 3M 336 | 3M 363 | 3M 402 | 3M 468 | 3M 501 | 3M 609 | 3M 1500 |
| 3M 171 | 3M 195 | 3M 225 | 3M 312 | 3M 339 | 3M 375 | 3M 405 | 3M 471 | 3M 510 | 3M 633 | 3M 1800 |
| 3M 174 | 3M 198 | 3M 291 | 3M 318 | 3M 342 | 3M 384 | 3M 420 | 3M 477 | 3M 513 | 3M 669 | |
| 3M 177 | 3M 201 | 3M 300 | 3M 330 | 3M 351 | 3M 393 | 3M 423 | 3M 483 | 3M 564 | 3M 711 | |
| 3M 186 | 3M 207 | 3M 303 | 3M 333 | 3M 360 | 3M 396 | 3M 447 | 3M 486 | 3M 597 | 3M 753 | |
| 5M TYPE | |||||||||
| Size | Size | Size | Size | Size | Size | Size | Size | Size | Size |
| 5M 180 | 5M 405 | 5M 500 | 5M 560 | 5M 645 | 5M 740 | 5M 890 | 5M 1050 | 5M 1250 | 5M 1595 |
| 5M 225 | 5M 420 | 5M 520 | 5M 565 | 5M 670 | 5M 770 | 5M 900 | 5M 1125 | 5M 1270 | 5M 1690 |
| 5M 305 | 5M 425 | 5M 525 | 5M 575 | 5M 695 | 5M 800 | 5M 920 | 5M 1135 | 5M 1350 | 5M 1870 |
| 5M 375 | 5M 450 | 5M 535 | 5M 600 | 5M 700 | 5M 810 | 5M 950 | 5M 1145 | 5M 1380 | 5M 2000 |
| 5M 400 | 5M 475 | 5M 550 | 5M 615 | 5M 710 | 5M 830 | 5M 975 | 5M 1225 | 5M 1420 | 5M 2100 |
| 8M TYPE | |||||||
| Size | Size | Size | Size | Size | Size | Size | Size |
| 8M 480 | 8M 720 | 8M 1040 | 8M 1248 | 8M 1520 | 8M 1896 | 8M 2240 | 8M 4400 |
| 8M 560 | 8M 800 | 8M 1056 | 8M 1280 | 8M 1600 | 8M 1904 | 8M 2400 | |
| 8M 600 | 8M 880 | 8M 1120 | 8M 1360 | 8M 1696 | 8M 2000 | 8M 2600 | |
| 8M 640 | 8M 896 | 8M 1160 | 8M 1424 | 8M 1760 | 8M 2080 | 8M 2800 | |
| 8M 680 | 8M 960 | 8M 1200 | 8M 1440 | 8M 1800 | 8M 2104 | 8M 3200 | |
| 14M TYPE | ||
| SIZE | SIZE | SIZE |
| 14M 966 | 14M 1890 | 14M 3150 |
| 14M 1190 | 14M 2100 | 14M 3360 |
| 14M 1400 | 14M 2310 | 14M 3500 |
| 14M 1456 | 14M 2450 | 14M 3850 |
| 14M 1610 | 14M 2590 | 14M 4326 |
| 14M 1778 | 14M 2800 | 14M 4578 |
For all intermediary sizes please contact our sales department.
