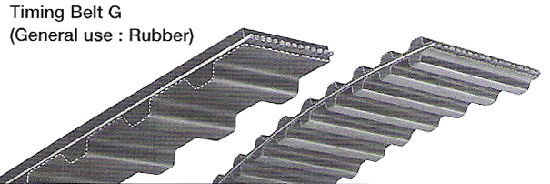

This synchronous transmission belt eliminates the problems of chains and gears.

Extra small pitch type fits well for precision equipment and ITsystems.

• Thin,lightweightand superiorflexibilityof this belt allowscompactdesign application.
• It enables efficienthighspeed powertransmission
• Lownoiseoperationcomparedto chain/gear
• Maintenance-free
• High flexibility
• I Standardbelt can be used inthe temperaturerange between-30°C and +90°C, and it is also conductive.

XL TYPE
Size	Size	Size	Size	Size	Size	Size	Size
60 XL	108 XL	122 XL	172 XL	210 XL	270 XL	316 XL	376 XL
70 XL	110 XL	130 XL	180 XL	220 XL	276 XL	320 XL	412 XL
80 XL	114 XL	140 XL	182 XL	230 XL	280 XL	330 XL	414 XL
84 XL	116 XL	150 XL	184 XL	240 XL	290 XL	340 XL	450 XL
90 XL	118 XL	160 XL	190 XL	250 XL	300 XL	356 XL	490 XL
100 XL	120 XL	170 XL	200 XL	260 XL	310 XL	360 XL	670 XL

L TYPE
Size	Size	Size	Size	Size	Size
124 L	240 L	322 L	375 L	510 L	660 L
150 L	255 L	334 L	390 L	525 L	728 L
165 L	270 L	337 L	420 L	540 L	817 L
187 L	285 L	345 L	439 L	581 L	863 L
210 L	300 L	360 L	450 L	600 L
225 L	320 L	367 L	480 L	630 L

H TYPE
Size	Size	Size	Size	Size	Size	Size	Size	Size
225 H	330 H	410 H	490 H	630 H	750 H	820 H	950 H	1400 H
230 H	350 H	420 H	510 H	650 H	760 H	840 H	1000 H	1700 H
240 H	360 H	430 H	540 H	660 H	770 H	850 H	1100 H
270 H	370 H	450 H	560 H	680 H	780 H	860 H	1250 H
300 H	390 H	465 H	570 H	700 H	800 H	880 H	1325 H
315 H	400 H	480 H	600 H	725 H	810 H	900 H	1350 H

XH / XXH TYPE
Size	Size	Size
507 XH	840 XH	1400 XH
560 XH	900 XXH	1540 XH
630 XH	980 XH	1600 XXH
700 XH	1120 XH	1750 XH
770 XH	1260 XH	1800 XXH

For all intermediary sizes please contact our sales department.
