SET FREE
All MITSUBOSHI conventional V-belts are "SET FREE", "SET FREE" means no matched set is necessary. All specific size of MITSUBOSHI conventional V-belts are manufactured with minimum length tolerance results in being able to use as matched set.
SUPER LOAD CAPACITY
MITSUBOSHI V-belts are built with high strength, specially treated polyester cord that gives the capacity to carry more horsepower.
DIMENSIONAL STABILITY
Superior dimensional stability is built into MITSUBOSHI V-belts. They are matched, and stay matched, throughout their service life. They are designed to absorb belt stretch problems and constant flexing fatigue.
LONGER BELT LIFE
The balanced combination and superior bonding of premium belt components give superior resistance to shock load, high temperature and heavy bending fatigue.
INCREASED PRODUCTIVITY
MITSUBOSHI V-belts can increase your productivity. They assure high load capacity, less belt maintenance and longer life.

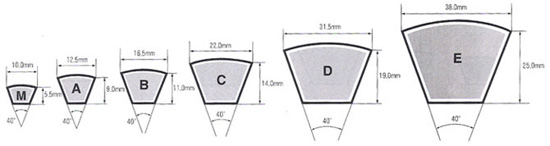

| M - SECTION (10 x 6 mm) | ||||||||||
| Size | Size | Size | Size | Size | Size | Size | Size | Size | Size | Size |
| M- 11 | M- 17 | M- 21.5 | M- 26.5 | M- 32 | M- 37 | M- 42 | M- 47.5 | M- 53 | M- 60 | M- 67 |
| M- 12 | M- 17.5 | M- 22 | M- 27 | M- 32.5 | M- 37.5 | M- 42.25 | M- 48 | M- 54 | M- 61 | M- 68 |
| M- 13 | M- 18 | M- 23 | M- 28 | M- 33 | M- 38 | M- 43 | M- 49 | M- 55 | M- 62 | M- 69 |
| M- 14 | M- 19 | M- 23.5 | M- 29 | M- 34 | M- 39 | M- 44 | M- 50 | M- 56 | M- 63 | M- 70 |
| M- 15 | M- 19.5 | M- 24 | M- 29.5 | M- 34.5 | M- 39.5 | M- 45 | M- 51 | M- 57 | M- 64 | |
| M- 15.5 | M- 20 | M- 25 | M- 30 | M- 35 | M- 40 | M- 46 | M- 51.5 | M- 58 | M- 65 | |
| M- 16 | M- 21 | M- 26 | M- 31 | M- 36 | M- 41 | M- 47 | M- 52 | M- 59 | M- 66 | |
| A - SECTION (13 x 8 mm) | ||||||||||
| Size | Size | Size | Size | Size | Size | Size | Size | Size | Size | Size |
| A-16 | A-29 | A- 42 | A- 55 | A- 68 | A- 81 | A- 94 | A- 107 | A- 120 | A-138 | A-167 |
| A-17 | A-30 | A- 43 | A- 56 | A- 69 | A- 82 | A- 95 | A- 108 | A- 121 | A-140 | A-170 |
| A-18 | A-31 | A- 44 | A- 57 | A- 70 | A- 83 | A- 96 | A- 109 | A- 122 | A-142 | A-173 |
| A-19 | A-32 | A- 45 | A- 58 | A- 71 | A- 84 | A- 97 | A- 110 | A- 124 | A-144 | A-176 |
| A-20 | A-33 | A- 46 | A- 59 | A- 72 | A- 85 | A- 98 | A- 111 | A- 125 | A-146 | A-177 |
| A-21 | A-34 | A- 47 | A- 60 | A- 73 | A- 86 | A- 99 | A- 112 | A- 126 | A-148 | A-180 |
| A-22 | A-35 | A- 48 | A- 61 | A- 74 | A- 87 | A- 100 | A- 113 | A- 128 | A-150 | |
| A-23 | A-36 | A- 49 | A- 62 | A- 75 | A- 88 | A- 101 | A- 114 | A- 130 | A-153 | |
| A-24 | A- 37 | A- 50 | A- 63 | A- 76 | A- 89 | A- 102 | A- 115 | A-132 | A-155 | |
| A-25 | A- 38 | A- 51 | A- 64 | A- 77 | A- 90 | A- 103 | A- 116 | A-134 | A-158 | |
| A-26 | A- 39 | A- 52 | A- 65 | A- 78 | A- 91 | A- 104 | A- 117 | A-135 | A-160 | |
| A-27 | A- 40 | A- 53 | A- 66 | A- 79 | A- 92 | A- 105 | A- 118 | A-136 | A-162 | |
| A-28 | A- 41 | A- 54 | A- 67 | A- 80 | A- 93 | A- 106 | A- 119 | A-137 | A-165 | |
| B - SECTION (17 x 11 mm) | |||||||||
| Size | Size | Size | Size | Size | Size | Size | Size | Size | Size |
| B-20 | B-35 | B-50 | B-65 | B-80 | B-95 | B-110 | B-125 | B-140 | B-170 |
| B-21 | B-36 | B-51 | B-66 | B-81 | B-96 | B-111 | B-126 | B-142 | B-173 |
| B-22 | B-37 | B-52 | B-67 | B-82 | B-97 | B-112 | B-127 | B-144 | B-175 |
| B-23 | B-38 | B-53 | B-68 | B-83 | B-98 | B-113 | B-128 | B-146 | B-178 |
| B-24 | B-39 | B-54 | B-69 | B-84 | B-99 | B-114 | B-129 | B-148 | B-180 |
| B-25 | B-40 | B-55 | B-70 | B-85 | B-100 | B-115 | B-130 | B-150 | B-185 |
| B-26 | B-41 | B-56 | B-71 | B-86 | B-101 | B-116 | B-131 | B-152 | B-190 |
| B-27 | B-42 | B-57 | B-72 | B-87 | B-102 | B-117 | B-132 | B-154 | B-195 |
| B-28 | B-43 | B-58 | B-73 | B-88 | B-103 | B-118 | B-133 | B-156 | B-210 |
| B-29 | B-44 | B-59 | B-74 | B-89 | B-104 | B-119 | B-134 | B-158 | B-225 |
| B-30 | B-45 | B-60 | B-75 | B-90 | B-105 | B-120 | B-135 | B-160 | B-238 |
| B-31 | B-46 | B-61 | B-76 | B-91 | B-106 | B-121 | B-136 | B-162 | B-275 |
| B-32 | B-47 | B-62 | B-77 | B-92 | B-107 | B-122 | B-137 | B-164 | |
| B-33 | B-48 | B-63 | B-78 | B-93 | B-108 | B-123 | B-138 | B-165 | |
| B-34 | B-49 | B-64 | B-79 | B-94 | B-109 | B-124 | B-139 | B-166 | |
| C - SECTION (22 x 14 mm) | |||||||||
| Size | Size | Size | Size | Size | Size | Size | Size | Size | Size |
| C-36 | C-48 | C- 60 | C- 72 | C- 84 | C- 96 | C- 108 | C- 120 | C-144 | C-204 |
| C-37 | C-49 | C- 61 | C- 73 | C- 85 | C- 97 | C- 109 | C- 121 | C-150 | C-210 |
| C-38 | C-50 | C- 62 | C- 74 | C- 86 | C- 98 | C- 110 | C- 122 | C-152 | C-225 |
| C-39 | C-51 | C- 63 | C- 75 | C- 87 | C- 99 | C- 111 | C- 124 | C-158 | C-238 |
| C-40 | C-52 | C- 64 | C- 76 | C- 88 | C- 100 | C- 112 | C- 126 | C-160 | C-268 |
| C-41 | C-53 | C- 65 | C- 77 | C- 89 | C- 101 | C- 113 | C- 128 | C-162 | C-298 |
| C-42 | C-54 | C- 66 | C- 78 | C- 90 | C- 102 | C- 114 | C- 130 | C-170 | C-328 |
| C-43 | C-55 | C- 67 | C- 79 | C- 91 | C- 103 | C- 115 | C- 132 | C-173 | C-358 |
| C-44 | C-56 | C- 68 | C- 80 | C- 92 | C- 104 | C- 116 | C- 134 | C-180 | C-418 |
| C-45 | C-57 | C- 69 | C- 81 | C- 93 | C- 105 | C- 117 | C- 136 | C-185 | |
| C-46 | C-58 | C- 70 | C- 82 | C- 94 | C- 106 | C- 118 | C- 138 | C-190 | |
| C-47 | C-59 | C- 71 | C- 83 | C- 95 | C- 107 | C- 119 | C- 140 | C-195 | |
| D - SECTION (32 x 19 mm) | ||||||||
| Size | Size | Size | Size | Size | Size | Size | Size | Size |
| D-100 | D-126 | D-148 | D-167 | D-184 | D-200 | D-237 | D-270 | D-358 |
| D-103 | D-128 | D-150 | D-168 | D-185 | D-205 | D-240 | D-275 | D-390 |
| D-104 | D-130 | D-152 | D-170 | D-186 | D-209 | D-245 | D-276 | D-418 |
| D-105 | D-132 | D-154 | D-172 | D-187 | D-210 | D-248 | D-280 | D-450 |
| D-108 | D-134 | D-155 | D-173 | D-188 | D-215 | D-250 | D-285 | D-478 |
| D-110 | D-135 | D-156 | D-174 | D-190 | D-217 | D-255 | D-290 | D-538 |
| D-112 | D-136 | D-158 | D-175 | D-192 | D-220 | D-256 | D-295 | D-598 |
| D-115 | D-138 | D-160 | D-176 | D-194 | D-225 | D-260 | D-297 | |
| D-118 | D-140 | D-162 | D-177 | D-195 | D-228 | D-264 | D-298 | |
| D-120 | D-142 | D-164 | D-178 | D-196 | D-230 | D-265 | D-300 | |
| D-122 | D-144 | D-165 | D-180 | D-197 | D-235 | D-266 | D-314 | |
| D-124 | D-146 | D-166 | D-182 | D-198 | D-236 | D-268 | D-328 | |
| E - SECTION (38 x 25 mm) | |||||||
| Size | Size | Size | Size | Size | Size | Size | Size |
| E-144 | E-195 | E-225 | E-270 | E-330 | E-390 | E-480 | E-600 |
| E-180 | E-210 | E-240 | E-300 | E-360 | E-420 | E-540 | E-660 |
