• Easy to operate
• Silent in operation
• Light and manoeuvrable
• Economical
• Minimum maintenance
• Compact
• Versatile

Wheels

Steering and support wheels : 2 Nylon wheels Ø 180 x 50mm

Load wheels : 4 Nylon wheels Ø 80 x 70mm

PUMP	WHEELS
Easy access to pump makes DES 5E/8E/10E, Easy to service	DES 5E/8E/10E are supplied with extra salient Nylon Wheels

DES 5E

• Basic capacity 500kg
• Electric lift, Manual driving
• Lift heights -

  • 1600mm With mono mast
  • 2000mm With telescopic mast
  • 2850mm With telescopic mast

DES 8E/10E

• Basic capacity 800/1000kg
• Electric lift, Manual driving
• Lift heights -

  • 1600mm With mono mast
  • 2000mm With telescopic mast
  • 2850mm With telescopic mast
  • 3350mm With telescopic mast

DES 5E / 8E / 10E are light manoeuvrable stackers with battery operated lifting function with a capacity from 500kg to 1000kg.

DES 5E / 8E / 10E is extremely versatile, as loading and stacking takes place with the same machine. Further more this type of stacker can profitably be used as an adjustable worktable. This low-priced machine is a time saver and economical.

DES 5E / 8E / 10E is versatile for industries and enterprises such as press shops etc. They are equipped with a low-noised hydraulic pump.

For Video Please Click Here

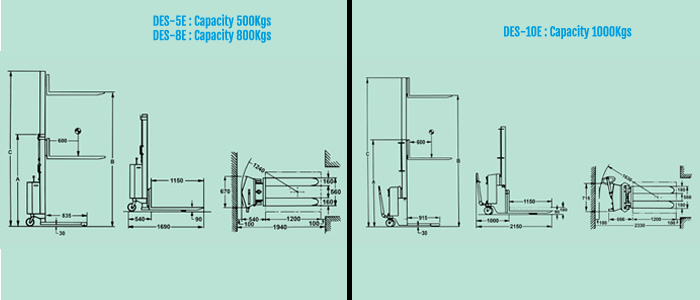

SPECIFICATIONS
MODEL	DES-5E 1600mm	DES-5E 2000mm	DES-5E 2850mm	DES-8E 1600mm
Mast	Mono	Telescopic	Telescopic	Mono
Lift Height 'B'	1600mm	2000mm	2850mm	1600mm
Shut Height 'A'	2000mm	1600mm	2000mm	2000mm
Extended Height 'C	2000mm	2570mm	3400mm	2000mm
Capacity at Maximum Height	500kg	400kg	250kg	800kg
Weight without Battery	190kg	230kg	250kg	230kg

Max. Fork Height Dim. Bin mm	Overall Height Dim. A in mm	Extended Mast Height Dim. C in mm	Model DES10E Capacity in kg
1400	1800	1800	1000
1580	1980	1980	1000
2450	1780	2920	1000
2850	1980	3320	850
3100	2100	3570	770
3350	2230	3820	700
3600	2350	4070	600
3900	2500	4370	480
4200	2650	4670	360

DILIP Stackers - an indispensable auxiliary for all types of enterprises.

Mast : The mast is made of quality steel and bent in C-profiles, together with the narrow cross-members that gives a light and very stable construction.The inner and outer masts are furnished with side thrust rollers preventing lateral play.

Carriage and Forks : The carriage has an open centre section and low profile forks with inner reinforcements.
The outside fork spread is as standard 560mm, but 480mm can also be supplied.
The standard fork length is 1150mm but 850mm can be supplied

Hydraulic System : The battery operated lift pump is mounted on noise suppressing rubber blocks.The forks are lifted and lowered by means of an easily adjustable valve with built-in excess-pressure function preventing overload. All hydraulic hoses and fittings meet the SAE standard. The lowering speed of the forks is controlled by a lowering brake valve

Special Version : Galvanized.

Alternative Energy Supply : Main Connection

DES 5E/8E/10E, can be supplied for connection to 3x220 V and 380 V alternating current.All necessary accessories such as cable roll and plug are in our comprehensive programme

DES 5E Hydraulic Pump	12V electro-hydraulic pump	1.5 Kw/2600 rpm
Lifting Speed	Unladen : 0.25m/sec.	Laden 500kg : 0.23 m/sec
Lowering Speed	Unladen; : 0.19m/sec.	Laden 500kg : 0.23 m/sec
Battery	1x12V BATTERY	Type: Start Capacities from 88Ah to 175Ah
Max. Battery box measurements	H=255mm,W=225mm L=505mm
Wheels
Steering and support wheels	2 Nylon wheels	Ø 180 x 50mm
Load wheels :	4 Nylon wheels	Ø 80 x 70mm
DES 8E/10E Hydraulic Pump :	12V 1.5 Kw/2600 rpm	Electro-hydraulic pump
Lifting Speed	Unladen : 0.15m/sec.	Laden : 0.1 m/sec
Lowering Speed	Unladen : 0.15m/sec.	Laden : 0.25 m/sec.
Battery	12V 150 Ah capacity
Wheels	2 Nylon support wheels Ø 180 x 50mm	4 Nylon load wheels Ø 80 x 70mm

Options

• Automatic cut-off charger
• Parking brake
