Wheels
Steering and support wheels : 2 Nylon wheels Ø 180 x 50mm
Load wheels : 4 Nylon wheels Ø 80 x 70mm
| HANDLE | PUMP | WHEELS |
|---|---|---|
 |
 |
 |
| Drawbar with finger protection clamp and release handle. | Simple and relieble Hydraulic System. | Dust free nylon wheels with double sealed bearings. |
For Video Please Click Here
| MODEL | DS-5 1600mm | DS-5 2000mm |
DS-5 3000mm |
DS-8 1600mm |
DS-15 1600mm |
| Mast Type | Mono | Telescopic | Telescopic | Mono | Mono |

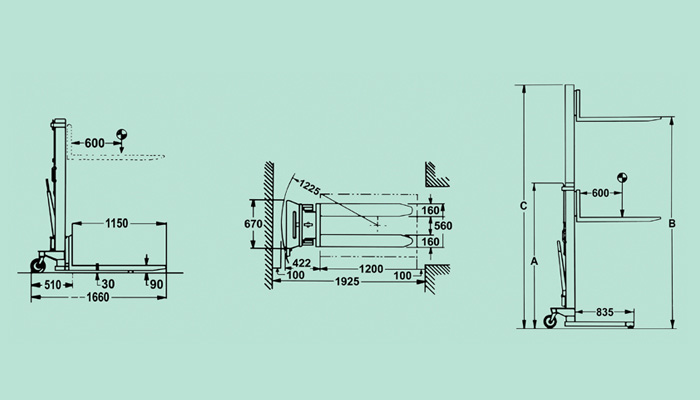

| Lift Height 'B' | 1600mm | 2000mm | 3000mm | 1600mm | 1600mm |
| Shut Height 'A' | 2000mm | 1600mm | 2500mm | 2000mm | 2000mm |
| Max Extended Height 'C' | 2000mm | 2570mm | 3550mm | 2000mm | 2000mm |
| Basic load capacity | 500kg | 500kg | 500kg | 800kg | 1500kg |
| Capacity at Max Height | 500kg | 400kg | 400kg | 800kg | 1500kg |
| Weight | 180kg | 200kg | 250kg | 230kg | 280kg |
| Lift /Stroke | 20mm | 20mm | 20mm | 20mm | 20mm |
- Hard chromed, polished pistons that are resistant to rust, scratches and wear.
- Double sealed high pressure polyurethane packing.
- To ensure long life of the hydraulic system.
- To prevent leakages.
- Ergonomically designed steering handle.
- For easy operation from all angles.
- To reduce pulling power and minimise operation fatigue.
- Light and compact construction.
Mast :
Made of quality steel bent in C profiles. Inner and outer mast furnished with thrust rollers to prevent lateral play.
Carriage :
The carriage has an open centre section and low profiled forks with inner reinforcement.
