HYDRAULIC HAND PALLET TRUCK

Model - DP-25/30
Capacity: 2500/3000 kg

DILIP uses single piece bent forks for extra strength. Hand lowering is the key to productivity. Pull the convenient lever in the DP-25/30 large steering handle and effortlessly deposit the load. The special handle design offers protection for the operator's handle and makes raising loads and steering easier.

Release the handle and it returns to vertical. A few strokes of the handle provide 110mm of lift, the DP-25/30 heavy duty pump is built to take thousands of pick-up and deposit cycles. The pump 'top-of-stroke' hydraulic fluid bypass minimises stress on the system when load is raised to maximum lift height.

Application Specification Dilip Offers

Easy to operate
Silent in operation
Requires minimum pulling power
No oil leakage
Minimum maintenance
Maximum manoeuvrability

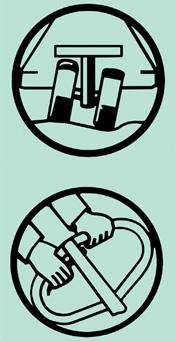

LOAD WHEELS	PARKING BRAKE

Bogie mounted for driving on uneven floors, Nose Wheels	Foot operated parking brake is available as an option

For Video Please Click Here

Paper rolls, High unstable loads, Special fork lengths & widths Galvanised & Stainless steel versions are also provided

Load Capacity :	2500/ 3000 kg.
Lift	9mm / Stroke
Lower Speed :	Continuosly variable
Weight :	70-80 kg

To ensure constant floor contact and stability.
To reduce wear and tear on the wheels.

DILIP offers an ergonomically designed steering handle

For easy operation from all angles ergonomically.
To reduce pulling power and minimise operation fatigue.

DILIP offers double sealed ball bearing to ensure dust free operation

Hydraulic System

The manually operated lift pump is simple and reliable in operation. The hard chrome polished piston are resistent to rust, scratches and strokes. The pump is double sealed wich secures efficiently against leakages and prolongs the life of the packing.
The lift cylinders is welded directly on to the pump, and the oil reservoir is welded around the lift cylinder.This imparts efficient tightness and eliminates tube and hose connections.
The hand pallet truck is equipped with a >> neutral position valve << as standard. When the drawbar is moved slowly, the neutral position ensures that the load is not lifted (Driving position). When the drawbar is moved a little faster, the load is lifted the usual way (lifting function).
The system is simple, needs no adjustment and is reliable in operation.
