- Silent in operation
- Easy to operate
- Light and manoeuvrable
- Minimum maintenance
- Economical
- Compact
- Versatile
| HANDLE | PARKING BRAKE | STABILIZERS |
 |
 |
 |
| Drawbar with finger protection clamp and release handle | Foot operated parking brake is available as an option | Side stabilizers in operation |
Capacity
- 800 kg / 1000 kg
- DH 8 / 10 Normal Lift
- DH 8 / 10 Quick Lifts for loads upto 150 kg.

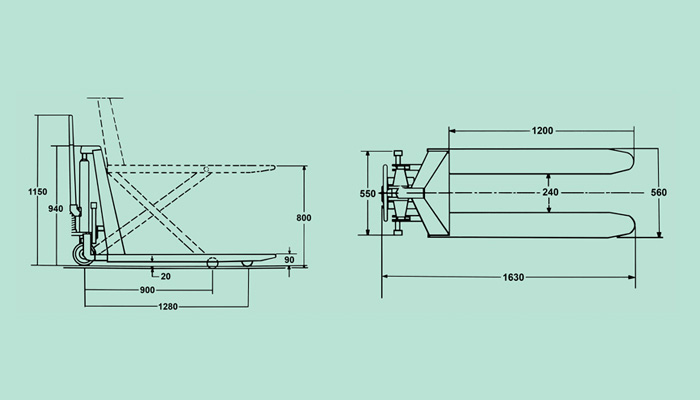

Fork dimension
480 & 560 x 1200mm Available in corrosion resistant version(Stainless steel or Galvanized )
For Video Please Click Here
| Load Weight : | 800 kg |
|---|---|
| Lifting Weight : | 800mm |
| Lifting capacity : | 14mm/stroke |
| Weight : | 122 kg | Wheels : | 2 nylon Wheels Ø 180 x50mm, 2 nylon wheels Ø 80 x 70mm |
DH - 8 is a special pallet truck which combines the advantage of the hand pallet truck and the adjustable worktable. The forks of the pallet truck can be rapidly and easily lifted by means of the hydraulic pump which is operated with the drawbar.
The quality and reliability of DH-8 is very high because....
- Hard chromed, polished pistons that are resistant to rust, scracthes and wear.
- Double sealed high pressure polyurethane packing.
- To ensure long life of the hydraulic system.
- To prevent leakages.
- Ergonomically designed steering handle.
- For easy operation from all angles.
- To reduce pulling power and minimise operator fatigue.
- Light and compact construction
- Safety
DH-8 is equipped with adjustable side stabilizers. At 350mm they lift steering wheels above the floor.
This ensures that the equipment remains stationery when being used as a worktable.
